Вуличний ліхтар URBIDERMIS SLOPE

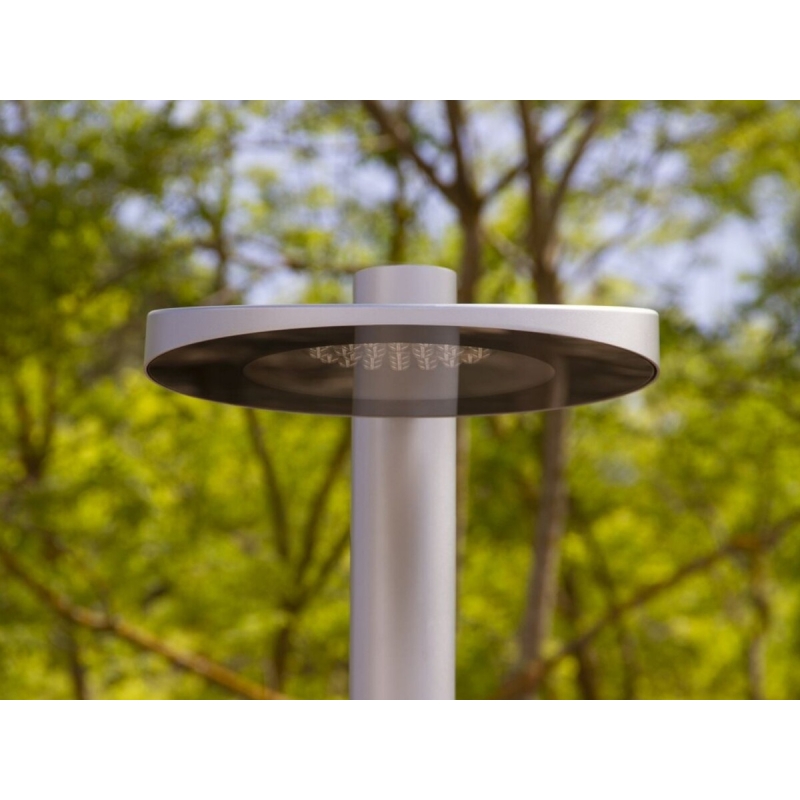

Geometric and precise.‎ Almost mathematical synthesis.‎ Sam Hecht and Kim Colin designed the Slope luminaire drawing a gentle profile with a subtle angle of just nine degrees that avoids lighting contamination and glaring.‎ Slope gently blends in the landscape.‎ The family was designed to adapt to all types of pre-existing mount and to light any public or private space.‎ The arm rotation and vertical flow of the luminaire afford non-invasive, efficient and comfortable lighting.‎ It incorporates a wide range of street distributions that guarantee uniform lighting values, visual comfort and low maintenance.‎

MATERIALS AND FINISHES
Injected aluminium luminaire, primed and with Light grey, Medium grey or Dark grey paint finish.‎ Injected aluminium accessories, primed and painted with same finish.‎ Injected ABS internal reflector.‎ Tempered optical glass diffuser.‎ Poles made of hot-dip galvanised and primed steel, painted with the same finish: 3,60m, 4,40m, 5,20m and 6,00m heights, with one circular tube section of Ø 114,3 mm; 6,20m height, with two circular tube sections of Ø 114,3 mm at the top and Ø152 mm at the bottom.‎

INSTALLATION AND MAINTENANCE
Adaptable to various diameters of cylindrical pole.‎ The pole is fixed using a concrete cube, with groove for wiring, made on-site and four pole anchor bolts, 20 cm below the pavement surface.‎ Delivered in two parts: luminaire and accessories; or three parts: luminaire, accessories and pole.‎ Instructions, screws, template and pole anchor bolts are included.‎

Weight Luminaire: 6 kg
Certification CE, UL, RoHs, IP66, IK08, Class I
Asymmetric distribution: TypeII, Type III, Type IV
18 LEDs 22W, 32W, 42W
36 LEDs 40W, 59W, 85W
3000K – 4000K
Dimmable
